3-in-1 Precision Hinge Drilling Jig
3-in-1 Precision Hinge Drilling Jig
Regular price
$119.98 USD
Regular price
$238.96 USD
Sale price
$119.98 USD
Unit price
per
Couldn't load pickup availability
- Damage compensation
- Lost items compensation
- Safe material
Cleaner Layout. Confident Results.
Take the Guesswork Out of Concealed Hinges
Clamp the jig, guide the cutter, and create a clean hinge-cup recess with a stable setup you can repeat from door to door.
A straightforward clamp-to-install workflow—shown with the real tool in action.
Built for Faster, More Repeatable Hinge Work

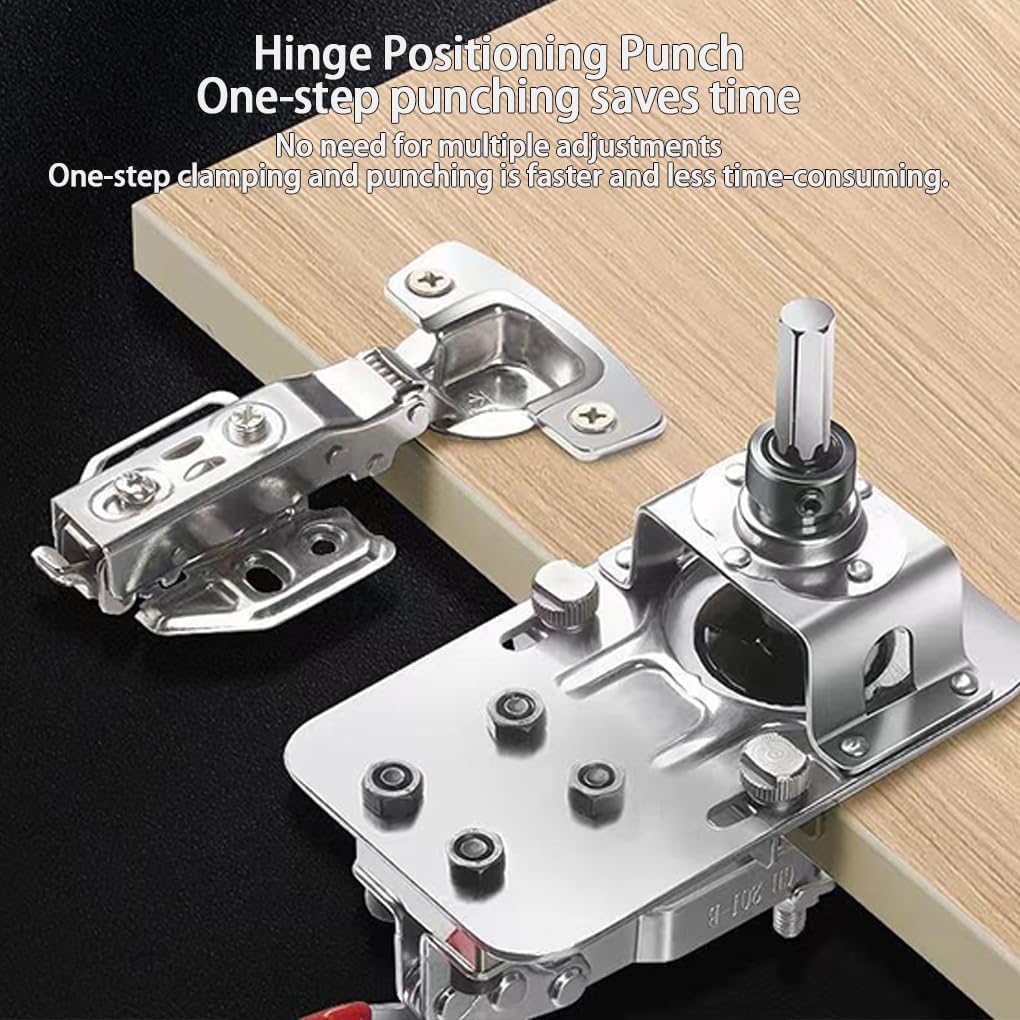

One-Step Positioning
Clamp and align from one compact setup.
Stable Drill Guidance

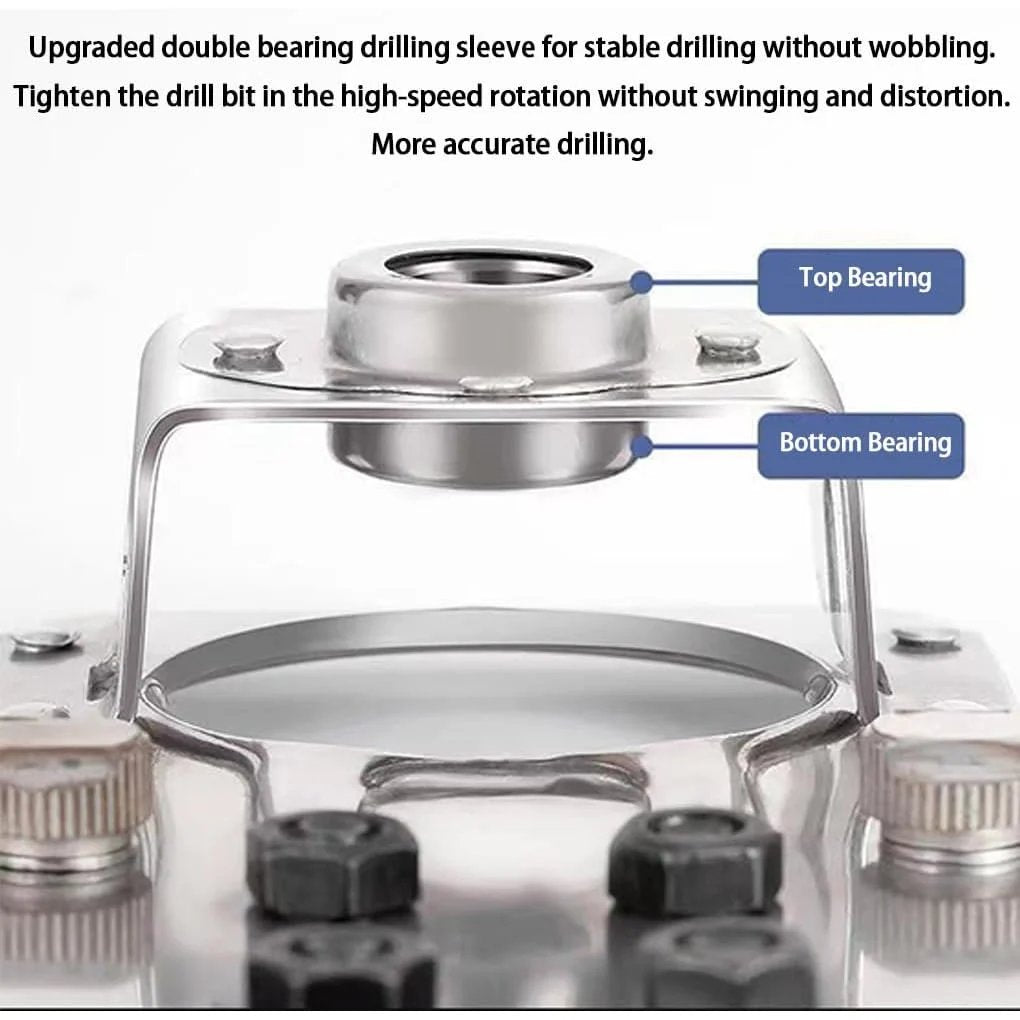

The double-bearing sleeve helps reduce wobble.

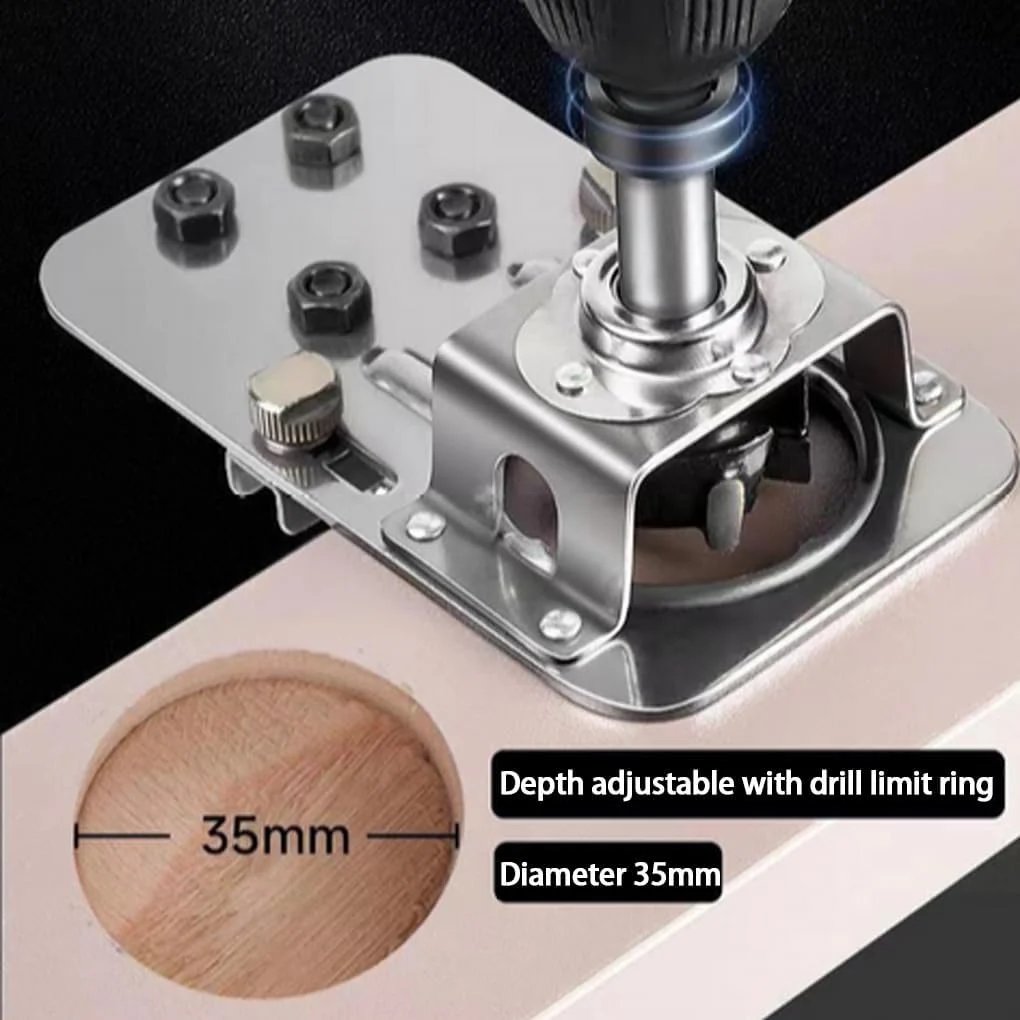

35mm Cup Holes
Designed around common concealed-hinge cup drilling.
Repeatable Setup
Keep your process consistent across multiple doors.
Hold the Cutter Steady Where Accuracy Matters

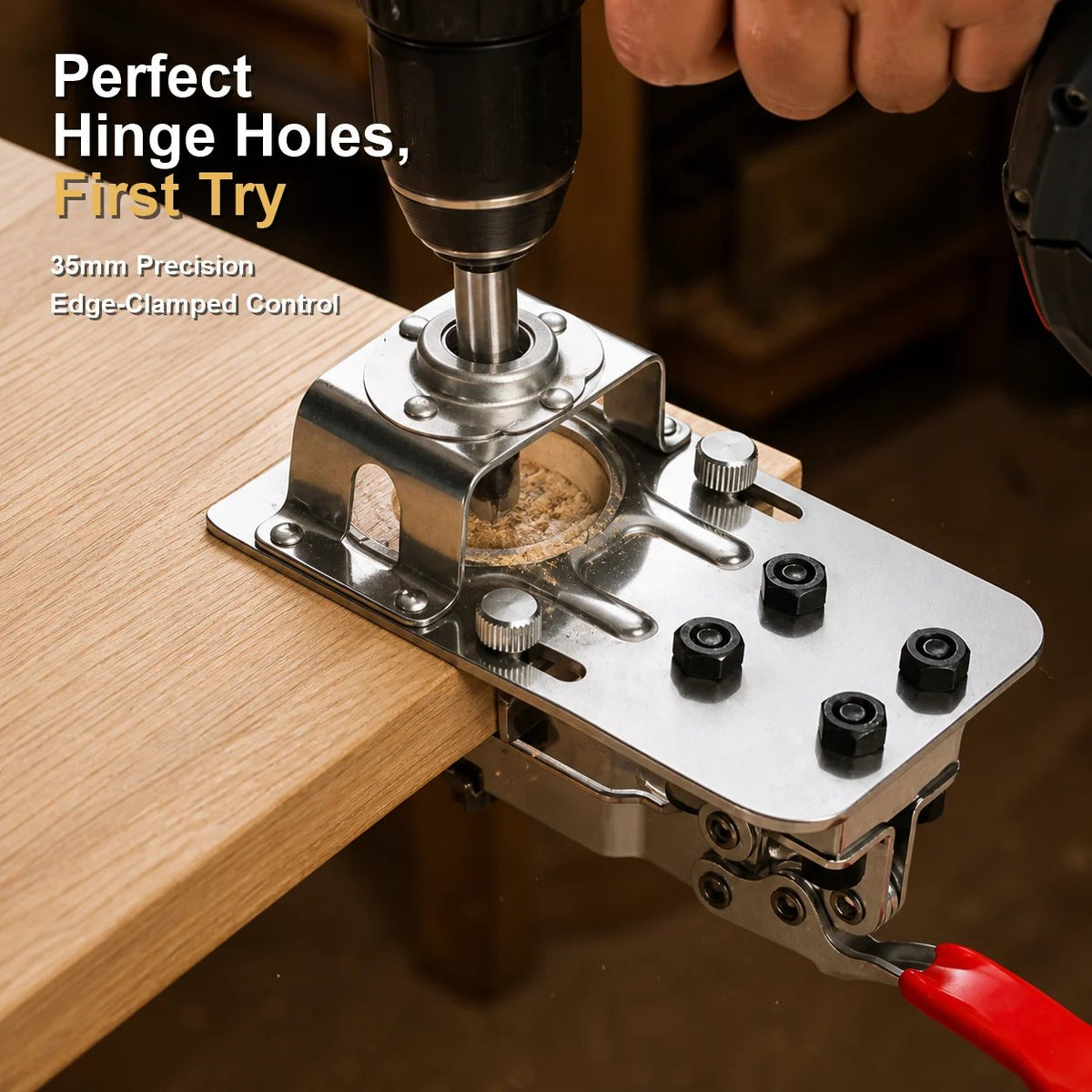

Hand measuring and freehand drilling can turn one small offset into a door that never sits quite right. The metal body grips the work edge while the bearing-guided sleeve keeps the cutting action centered and controlled.
From Clean Recess to Installed Hinge

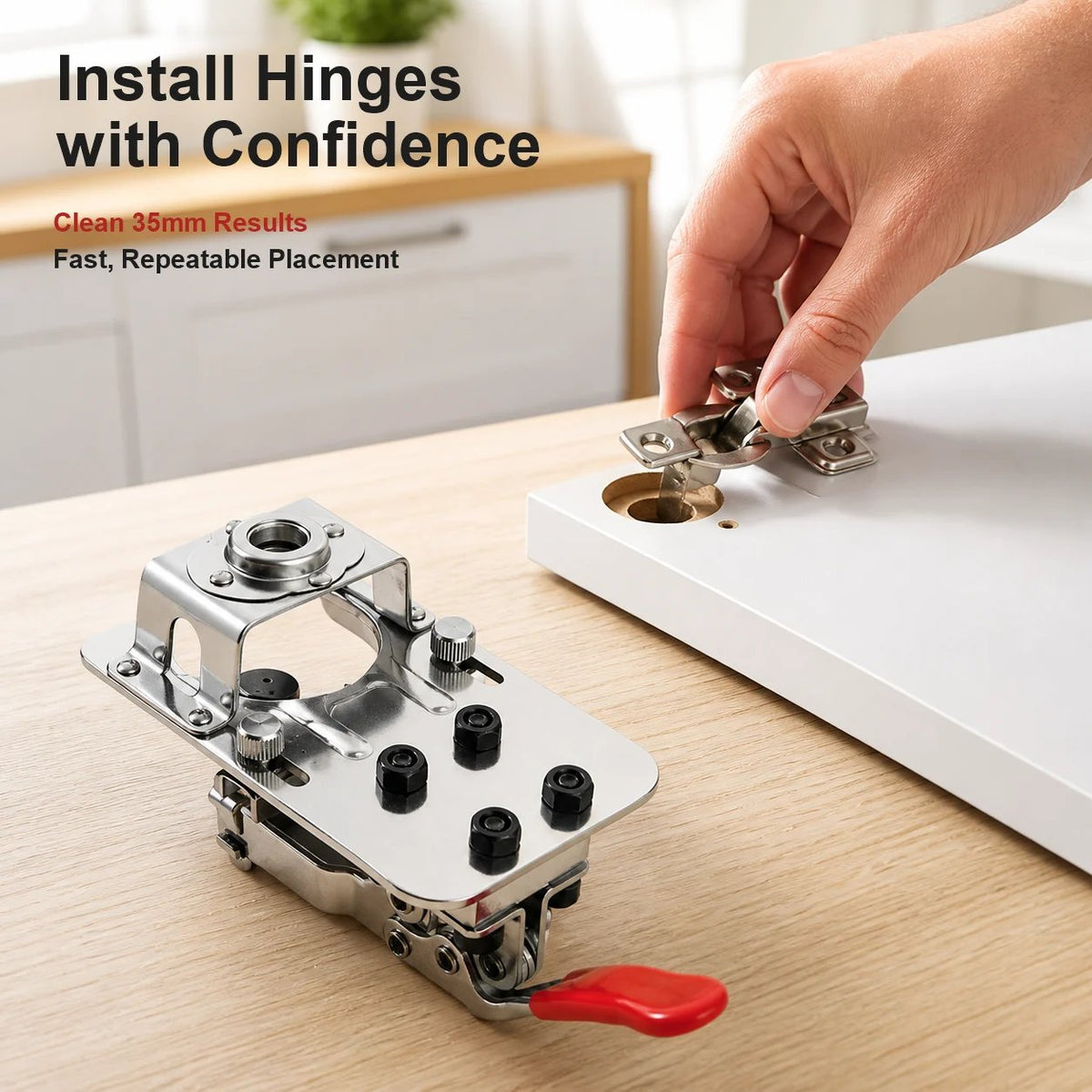

The goal is not another tool on the bench—it is a cleaner installation you can finish with confidence. Set the position, cut the 35mm recess, clear the chips, and seat the concealed hinge.
A Simple Four-Step Workflow
- Set the position. Place the jig at the desired hinge location on the door edge.
- Clamp it securely. Tighten the edge clamp so the metal plate stays seated.
- Guide the drill. Keep the drill vertical through the bearing sleeve while cutting the recess.
- Clear and install. Remove the jig, clean the recess, and fit the concealed hinge.
Good to Know
Primary job
Positioning and drilling 35mm concealed-hinge cup recesses.
Positioning and drilling 35mm concealed-hinge cup recesses.
Construction

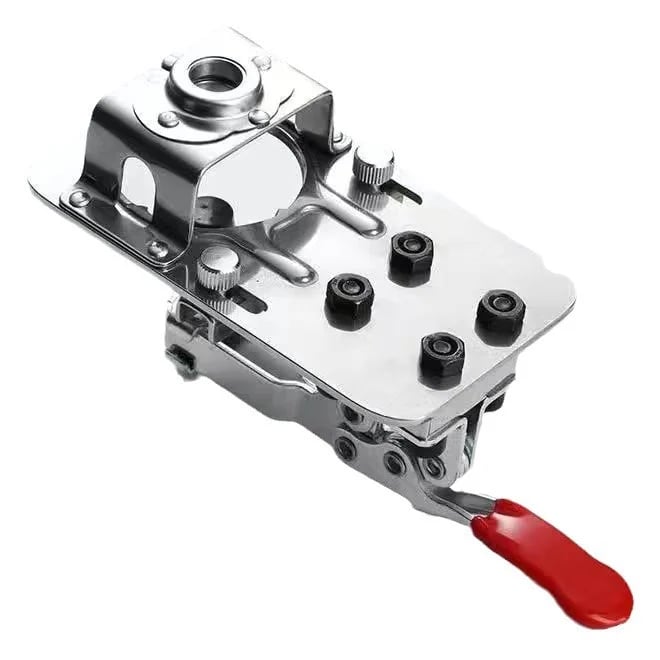

Silver metal jig body with adjustable positioning hardware and a bearing-guided sleeve.
Silver metal jig body with adjustable positioning hardware and a bearing-guided sleeve.
Sold style
3-in-1 hinge jig without a separate pilot-hole guide add-on.
3-in-1 hinge jig without a separate pilot-hole guide add-on.
What you provide
A compatible drill and the concealed hinges for your cabinet project.
A compatible drill and the concealed hinges for your cabinet project.
What DIYers Appreciate
“I used it while refreshing our kitchen doors. The finished recess was clean, and seeing the hinge sit where I expected was a huge relief.”
— Alicia R., Georgia
“The bearing guide is the part I noticed most. The drill felt easier to keep straight, especially on the darker hardwood door I was working on.”
— Devon P., Michigan
“I finished a small cabinet over the weekend and both hinges lined up without the usual back-and-forth. The door closes smoothly now.”
— Robert K., Oregon
Frequently Asked Questions
What is this jig designed to do?
It helps position and guide drilling for 35mm concealed-hinge cup recesses on cabinet doors.
Do I still need a drill?
Yes. The jig holds and guides the setup; you provide a compatible drill for cutting the recess.
Does this version include a pilot-hole guide?
No. This is the selected 3-in-1 version without the separate pilot-hole guide add-on.
Why does the bearing sleeve matter?
It helps support a straighter, steadier drilling motion and reduces side-to-side wobble during use.
Can I use it for repeated cabinet-door work?
That is one of its strongest uses: once your position is set, the jig supports a more consistent workflow across multiple doors.
What if I need help with setup or my order?
Contact our support team. We can help with setup questions, missing parts, transit damage, or the most practical next step for your order.
Support for the Part That Matters: Getting the Setup Right
If the tool arrives damaged, something is missing, or you run into a setup question, our support team will help make it right with practical guidance or the next best solution.
Measure Less. Install with More Confidence.
Bring a steadier, repeatable process to your next cabinet-door project—and spend more time admiring the finished fit.
